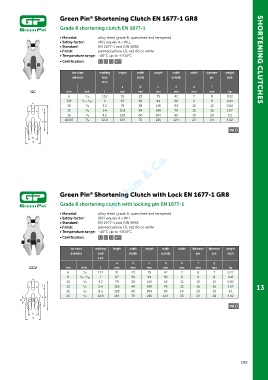

Page 199 - Green Pin Product Catalogue 2019_EN

Green Pin Shortening Clutch EN 1677-1 GR8
®
Grade 8 shortening clutch EN 1677-1

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard : EN 1677-1 and DIN 5692
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b SHORTENING CLUTCHES

for chain working length width length width width diameter weight
diameter load inside outside pin each
limit
a b c d e f
GC mm inch t mm mm mm mm mm mm kg
6 7 /32 1.12 51 23 75 42 7 8 0.22
7/8 1 5 2 67 30 94 50 9 9 0.41
e /4 - /16
10 3 /8 3.2 79 38 116 63 12 13 0.82
f 13 1 /2 5.4 103 49 149 79 15 16 1.67
16 5 /8 8.2 128 60 184 99 19 20 3.1
18/20 3 12.8 154 75 215 124 23 24 4.02
a c /4
INFO

b
d

Green Pin Shortening Clutch with Lock EN 1677-1 GR8
®
Grade 8 shortening clutch with locking pin EN 1677-1

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard : EN 1677-1 and DIN 5692
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b

for chain working length width length width width diameter diameter weight
diameter load inside outside pin pin each
limit
a b c d e f g
GCV mm inch t mm mm mm mm mm mm mm kg
6 7 /32 1.12 51 23 75 42 7 8 7 0.22
8 1 5 2 67 30 94 50 9 9 8 0.41
e /4 - /16
10 3 /8 3.2 79 38 116 63 12 13 12 0.82
f 13 1 /2 5.4 103 49 149 79 15 16 16 1.67 13
16 5 /8 8.2 128 60 184 99 19 20 20 3.1
a c 20 3 /4 12.8 154 75 215 124 23 24 20 4.02
g
INFO
b
d

199
