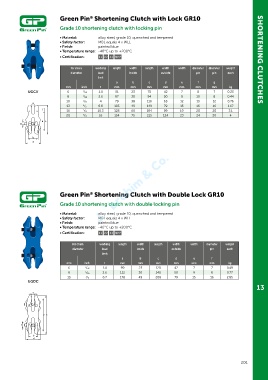

Green Pin Shortening Clutch with Lock GR10
®
Grade 10 shortening clutch with locking pin

• Material: alloy steel, grade 10, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted blue
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b SHORTENING CLUTCHES

for chain working length width length width width diameter diameter weight
diameter load inside outside pin pin each
limit
a b c d e f g
mm inch t mm mm mm mm mm mm mm kg
UGCV 6 7 /32 1.4 51 23 75 42 7 8 7 0.23
8 5 /16 2.6 67 30 94 50 9 10 8 0.44
10 3 /8 4 79 38 116 63 12 13 12 0.76
e
13 1 /2 6.8 103 49 149 79 15 16 16 1.67
f 16 5 /8 10.3 128 60 184 99 19 20 20 3.1
20 3 /4 16 154 75 215 124 23 24 20 4
a c
g

b
d

Green Pin Shortening Clutch with Double Lock GR10
®
Grade 10 shortening clutch with double locking pin

• Material: alloy steel, grade 10, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted blue
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b

for chain working length width length width width diameter weight
diameter load inside outside pin each
limit
a b c d e f
mm inch t mm mm mm mm mm mm kg
6 7 /32 1.4 99 23 120 42 7 7 0.49
8 5 /16 2.6 112 30 140 50 9 8 0.77
13 1 /2 6.7 178 49 208 79 15 16 2.85
UGDC
13

e

a c

f
b
d
