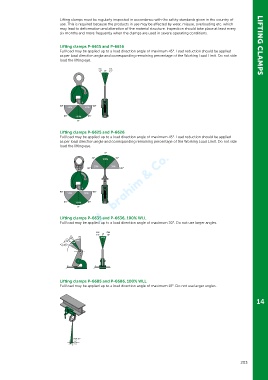

Page 203 - Green Pin Product Catalogue 2019_EN

Lifting clamps must be regularly inspected in accordance with the safety standards given in the country of
use. This is required because the products in use may be affected by wear, misuse, overloading etc. which
may lead to deformation and alteration of the material structure. Inspection should take place at least every
six months and more frequently when the clamps are used in severe operating conditions.

Lifting clamps P-6615 and P-6616 LIFTING CLAMPS
Full load may be applied up to a load direction angle of maximum 45°. Load reduction should be applied
as per load direction angle and corresponding remaining percentage of the Working Load Limit. Do not side
load the lifting eye.

max. max.
15° 0° 15°

90° 90°
50% 50%
45° 100% 45°
0°

Lifting clamps P-6625 and P-6626
Full load may be applied up to a load direction angle of maximum 45°. Load reduction should be applied
as per load direction angle and corresponding remaining percentage of the Working Load Limit. Do not side
load the lifting eye.
0°
45° 100% 45°

50% 50%
90° 90°

90° 90°
50% 50%
45° 100% 45°
0°

Lifting clamps P-6635 and P-6636, 100% WLL
Full load may be applied up to a load direction angle of maximum 30°. Do not use larger angles.

max. max.
15° 0° 15°
0° 100%
60°
90° 100%
75%
120° 50%

Lifting clamps P-6685 and P-6686, 100% WLL
Full load may be applied up to a load direction angle of maximum 15°. Do not use larger angles.

14

max.15°
