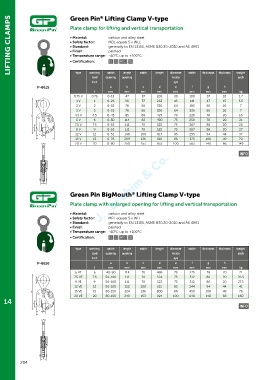

LIFTING CLAMPS Green Pin Lifting Clamp V-type
®
Plate clamp for lifting and vertical transportation

• Material:
carbon and alloy steel
• Safety factor:
MBL equals 5 x WLL
• Standard:
generally to EN 13155, ASME B30.20-2010 and AS 4991
painted
• Finish:
• Temperature range: -40°C up to +100°C
• Certification:
a
CE
2.1 2.2 MTC

type
width
working
length

load opening opening width length diameter width thickness thickness weight
each
inside

limit eye
P-6615 a b c d e f g h
t mm mm mm mm mm mm mm mm kg
0.75 V 0.75 0-13 47 37 202 30 100 37 10 1.7
1 V 1 0-25 56 37 263 45 141 47 15 3.5
2 V 2 0-35 78 56 336 64 183 56 16 7
3 V 3 0-35 78 56 336 64 336 56 16 7
4.5 V 4.5 0-45 85 60 425 70 228 78 20 16
6 V 6 0-50 114 82 490 75 259 78 20 21
7.5 V 7.5 0-55 111 70 522 75 267 86 20 26
9 V 9 0-55 111 70 522 75 267 86 20 27
12 V 12 0-52 148 100 617 85 295 94 44 37
15 V 15 0-76 209 136 810 86 373 106 49 70
20 V 20 0-80 250 153 933 100 563 140 66 149
INFO
Green Pin BigMouth Lifting Clamp V-type
®
Plate clamp with enlarged opening for lifting and vertical transportation

• Material: carbon and alloy steel
• Safety factor: MBL equals 5 x WLL
• Standard: generally to EN 13155, ASME B30.20-2010 and AS 4991
• Finish: painted
• Temperature range: -40°C up to +100°C
• Certification: 2.1 2.2 MTC a CE

type working width length width length diameter width thickness thickness weight
load opening opening inside each
limit eye
P-6616 a b c d e f g h
t mm mm mm mm mm mm mm mm kg
6 VE 6 40-90 114 70 486 75 275 78 20 21
7.5 VE 7.5 50-100 111 70 524 75 312 86 20 26.5
9 VE 9 50-100 111 70 522 75 312 86 20 27.5
12 VE 12 50-100 152 100 615 85 344 94 44 41
15 VE 15 80-150 224 136 800 86 450 106 49 76
20 VE 20 80-150 249 153 924 100 640 140 66 160
