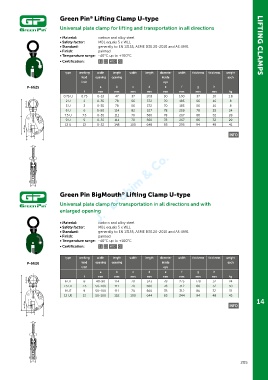

Page 205 - Green Pin Product Catalogue 2019_EN

Green Pin Lifting Clamp U-type
®
Universal plate clamp for lifting and transportation in all directions

• Material: carbon and alloy steel
• Safety factor: MBL equals 5 x WLL
• Standard: generally to EN 13155, ASME B30.20-2010 and AS 4991 LIFTING CLAMPS
• Finish: painted
• Temperature range: -40°C up to +100°C
• Certification: 2.1 2.2 MTC a CE

type working width length width length diameter width thickness thickness weight
load opening opening inside each
limit eye
P-6625 a b c d e f g h
t mm mm mm mm mm mm mm mm kg
0.75 U 0.75 0-13 47 37 203 30 100 37 10 1.8
2 U 2 0-35 78 56 372 70 183 56 16 8
3 U 3 0-35 78 56 372 70 183 56 16 8
6 U 6 0-50 114 82 527 78 259 78 32 24
7.5 U 7.5 0-55 111 70 560 78 267 86 32 28
9 U 9 0-55 111 70 560 78 267 86 32 29
12 U 12 0-52 148 100 648 85 295 94 48 41

INFO

Green Pin BigMouth Lifting Clamp U-type
®
Universal plate clamp for transportation in all directions and with
enlarged opening

• Material: carbon and alloy steel
• Safety factor: MBL equals 5 x WLL
• Standard: generally to EN 13155, ASME B30.20-2010 and AS 4991
• Finish: painted
• Temperature range: -40°C up to +100°C
• Certification: 2.1 2.2 MTC a CE

type working width length width length diameter width thickness thickness weight
P-6626 load opening opening inside each
limit eye
a b c d e f g h
t mm mm mm mm mm mm mm mm kg
6 UE 6 40-90 114 70 523 78 275 778 32 24
7.5 UE 7.5 50-100 111 70 560 78 312 86 32 30
9 UE 9 50-100 111 70 560 78 312 86 32 31
12 UE 12 50-100 152 100 644 85 344 94 48 45
14
INFO
