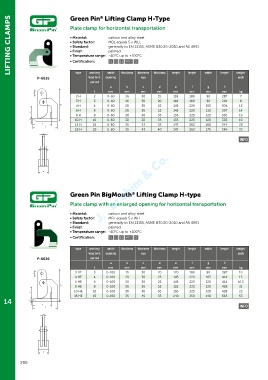

LIFTING CLAMPS Green Pin Lifting Clamp H-Type
®
Plate clamp for horizontal transportation

• Material:
carbon and alloy steel
• Safety factor:
MBL equals 5 x WLL
• Standard:
generally to EN 13155, ASME B30.20-2010 and AS 4991
painted
• Finish:
• Temperature range: -40°C up to +100°C
• Certification:
a
2.1 2.2 3.1 MTC
CE

working
width

each

eye

P-6635 type load limit opening thickness diameter thickness length length width length weight
per set
a b c d e f g h
t mm mm mm mm mm mm mm mm kg
2 H 2 0-60 16 30 15 118 180 90 287 7
3 H 3 0-60 16 30 20 118 180 90 291 8
4 H 4 0-60 20 30 25 145 220 105 304 13
6 H 6 0-60 20 30 25 145 220 110 307 14
8 H 8 0-60 30 30 35 135 225 120 336 19
10 H 10 0-60 30 30 35 135 225 120 336 19
15 H 15 0-60 35 43 35 147 262 160 344 30
18 H 25 0-60 35 43 40 147 262 175 349 33
INFO

Green Pin BigMouth Lifting Clamp H-type
®
Plate clamp with an enlarged opening for horizontal transportation

• Material: carbon and alloy steel
• Safety factor: MBL equals 5 x WLL
• Standard: generally to EN 13155, ASME B30.20-2010 and AS 4991
• Finish: painted
• Temperature range: -40°C up to +100°C
• Certification: 2.1 2.2 3.1 MTC a CE

type working width thickness diameter thickness length length width length weight
load limit opening eye each
P-6636 per set
a b c d e f g h
t mm mm mm mm mm mm mm mm kg
3 HE 3 0-100 15 30 20 120 180 90 387 10
4 HE 4 0-100 20 30 25 145 220 105 414 15
6 HE 6 0-100 20 30 25 145 220 120 414 16.5
8 HE 8 0-100 30 30 35 135 225 120 428 21
10 HE 10 0-100 30 30 35 135 225 120 428 22
15 HE 15 0-150 35 45 35 240 350 140 665 53
14
INFO
