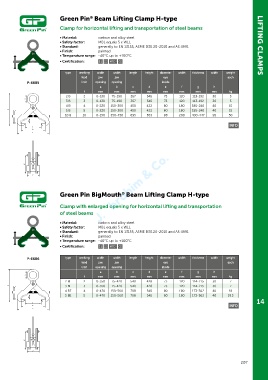

Page 207 - Green Pin Product Catalogue 2019_EN

Green Pin Beam Lifting Clamp H-type
®
Clamp for horizontal lifting and transportation of steel beams

• Material: carbon and alloy steel
• Safety factor: MBL equals 5 x WLL
• Standard: generally to EN 13155, ASME B30.20-2010 and AS 4991 LIFTING CLAMPS
• Finish: painted
• Temperature range: -40°C up to +100°C
• Certification: 2.1 2.2 MTC a CE

type working width width length height diameter width thickness width weight
load jaw jaw eye each
P-6685 limit opening opening inside
a b c d e f g h
t mm mm mm mm mm mm mm mm kg
2 B 2 0-130 75-190 357 345 73 120 113-192 30 5
3 B 3 0-130 75-190 357 345 73 120 113-192 30 5
4 B 4 0-220 150-300 450 422 80 180 185-240 40 15
5 B 5 0-220 150-300 450 422 80 180 185-240 40 15
10 B 10 0-190 350-450 695 653 88 200 400-447 95 50

INFO

Green Pin BigMouth Beam Lifting Clamp H-type
®
Clamp with enlarged opening for horizontal lifting and transportation
of steel beams

• Material: carbon and alloy steel
• Safety factor: MBL equals 5 x WLL
• Standard: generally to EN 13155, ASME B30.20-2010 and AS 4991
• Finish: painted
• Temperature range: -40°C up to +100°C
• Certification: 2.1 2.2 MTC a CE

P-6686 type working width width length height diameter width thickness width weight
load jaw jaw eye each
limit opening opening inside
a b c d e f g h
t mm mm mm mm mm mm mm mm kg
2 BE 2 0-350 75-420 540 428 73 120 114-275 30 7
3 BE 3 0-350 75-420 540 428 73 120 114-275 30 7
4 BE 4 0-470 150-560 708 545 80 180 173-362 40 18
5 BE 5 0-470 150-560 708 545 80 180 173-362 40 19.5
14
INFO
