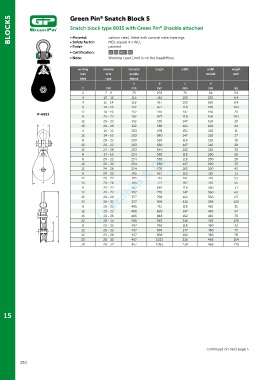

Page 210 - Green Pin Product Catalogue 2019_EN

BLOCKS Green Pin Snatch Block S ®
®
Snatch block type 601S with Green Pin Shackle attached

carbon steel, fitted with conical roller bearings
• Material:
• Safety factor:
• Finish: MBL equals 4 x WLL
painted
• Certification: 2.1 2.2 MTC b CE

• Note: Working Load Limit is on the headlifting
working diameter diameter length width width weight
load wire outside outside each
limit rope sheave
a b c d
t mm mm mm mm mm kg
2 7 - 9 75 293 75 82 3.9
4 10 - 12 115 363 102 120 6.4
4 12 - 14 152 417 102 160 8.4
8 14 - 16 152 477 118 160 14.3
12 14 - 16 152 555 147 160 20
P-6951
8 20 - 22 152 477 118 160 14.1
12 20 - 22 152 555 147 160 20
15 24 - 26 152 585 162 160 24
4 10 - 12 203 478 102 210 11
12 14 - 16 203 580 147 210 27
8 20 - 22 203 526 118 210 18
12 20 - 22 203 580 147 210 28
15 24 - 26 203 646 162 210 30
8 14 - 16 254 582 118 260 26
8 20 - 22 254 582 118 260 26
12 20 - 22 254 680 147 260 35
15 24 - 26 254 705 162 260 42
8 20 - 22 305 612 118 310 31
12 20 - 22 305 745 147 310 53
15 24 - 26 305 771 162 310 55
8 20 - 22 357 662 118 360 31
12 20 - 22 357 770 147 360 60
15 24 - 26 357 798 162 360 63
22 28 - 32 357 906 216 385 126
8 20 - 22 406 712 118 410 35
12 20 - 22 406 820 147 410 67
15 24 - 26 406 848 162 410 70
22 28 - 32 406 963 216 415 139
8 20 - 22 457 762 118 460 42
12 20 - 22 457 878 147 460 75
15 24 - 26 457 898 162 460 78
22 28 - 32 457 1033 216 465 154
30 28 - 32 457 1083 238 468 218

15

continued on next page >
