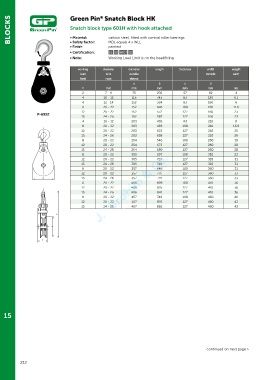

BLOCKS Green Pin Snatch Block HK
®
Snatch block type 601H with hook attached

• Material:
carbon steel, fitted with conical roller bearings
• Safety factor:
• Finish: MBL equals 4 x WLL
painted
• Certification: 2.1 2.2 MTC b CE

• Note: Working Load Limit is on the headfitting
working diameter diameter length thickness width weight
load wire outside outside each
limit rope sheave
a b c d
t mm mm mm mm mm kg
2 7 - 9 75 292 57 82 4
4 10 - 12 115 343 83 120 6.1
4 12 - 14 152 384 83 160 6
8 20 - 22 152 445 108 160 11.8
12 20 - 22 152 572 127 160 23
P-6952
15 24 - 26 152 587 127 160 23
4 10 - 12 203 435 83 210 8
8 20 - 22 203 495 108 210 16.9
12 20 - 22 203 622 127 210 25
15 24 - 26 203 638 127 210 26
8 20 - 22 254 546 108 260 19
12 20 - 22 254 673 127 260 28
15 24 - 26 254 689 127 260 28
8 20 - 22 305 597 108 310 23
12 20 - 22 305 724 127 310 31
15 24 - 26 305 740 127 310 31
8 20 - 22 357 648 108 360 31
12 20 - 22 357 775 127 360 33
15 24 - 26 357 791 127 360 33
8 20 - 22 406 699 108 410 36
12 20 - 22 406 825 127 410 36
15 24 - 26 406 841 127 410 36
8 20 - 22 457 749 108 460 40
12 20 - 22 457 876 127 460 42
15 24 - 26 457 892 127 460 43

15

continued on next page >
