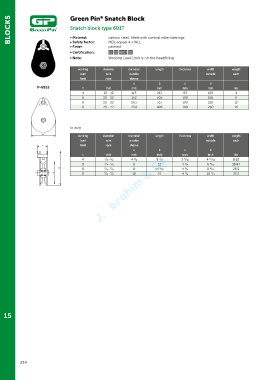

Page 214 - Green Pin Product Catalogue 2019_EN

BLOCKS Green Pin Snatch Block
®
Snatch block type 601T

• Material:
carbon steel, fitted with conical roller bearings
• Safety factor:
• Finish: MBL equals 4 x WLL
painted
• Certification: 2.1 2.2 MTC b CE

• Note: Working Load Limit is on the headfitting
working diameter diameter length thickness width weight
load wire outside outside each
limit rope sheave
a b c d
P-6953 t mm mm mm mm mm kg
4 10 - 12 115 213 83 120 4
8 20 - 22 152 305 108 160 9
8 20 - 22 203 357 108 210 12
8 20 - 22 254 406 108 260 16

In inch
working diameter diameter length thickness width weight
load wire outside outside each
limit rope sheave
a b c d
t inch inch inch inch inch lbs
4 3 /8 - /2 4 /2 8 /8 3 /32 4 /32 8.82
3
23
1
1
9
9
1
7
8 3 /4 - /8 6 12 4 /4 6 /32 19.84
8 3 /4 - /8 8 14 /32 4 /4 8 /32 26.5
1
9
7
1
7
1
1
8 3 /4 - /8 10 15 4 /4 10 /4 35.3

15
