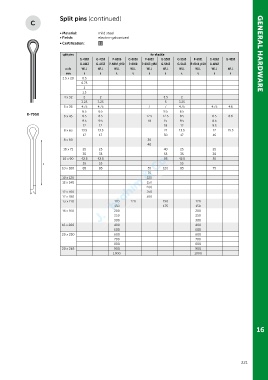

Page 221 - Green Pin Product Catalogue 2019_EN

Split pins (continued)

• Material: mild steel
• Finish: electro-galvanized
• Certification: 2.1

split pins for shackle GENERAL HARDWARE
G-4163 G-4153 P-6036 G-6038 P-6033 G-5263 G-5163 P-6031 G-4263 G-4553
G-4143 G-4133 P-6016 ≤150 P-6018 P-6013 ≤150 G-5243 G-5143 P-6011 ≤150 G-4243
a x b WLL WLL WLL WLL WLL WLL WLL WLL WLL WLL
mm t t t t t t t t t t
2.5 x 20 0.5
0.75
1
1.5
4 x 32 2 2 3.3 2
3.25 3.25 5 3.25
5 x 36 4.75 4.75 7 7 4.75 4.75 4.6
6.5 6.5 9.5 6.5
E-7950
6 x 45 8.5 8.5 12.5 12.5 8.5 6.5 8.6
9.5 9.5 18 15 9.5 8.5
12 12 18 12 9.5
8 x 63 13.5 13.5 21 13.5 12 15.5
17 17 30 17 16
8 x 80 30
40
10 x 71 25 25 40 25 25
35 35 55 35 30
10 x 90 42.5 42.5 85 42.5 55
55 55 55
10 x 100 85 85 55 120 85 75
75
10 x 120 125
12 x 140 150
200
12 x 160 250
12 x 180 300
13 x 110 120 120 150 120
150 175 150
16 x 160 200 200
250 250
300 300
16 x 200 400 400
500 500
20 x 230 600 600
700 700
800 800
20 x 265 900 900
1000 1000
