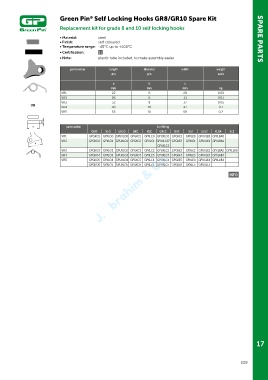

Green Pin Self Locking Hooks GR8/GR10 Spare Kit
®
Replacement kit for grade 8 and 10 self locking hooks
• Material: steel SPARE PARTS
• Finish: self coloured
• Temperature range: -40°C up to +200°C
• Certification: 2.1
• Note: plastic tube included, to make assembly easier
partnumber length diameter width weight
pin pin each
a b c
mm mm mm kg
VR1 22 6 28 0.02
VR2 26 6 31 0.03
VR3 32 8 37 0.05
VR
VR4 40 10 47 0.1
VR5 55 10 58 0.2
b
a partnumber for fitting
GKO XLO UXLO GKC XLC UXLC GKE XLE UXLE XLBA XLS
VR1 GPGKO1 GPXLO0 GPUXLO0 GPGKC1 GPXLC0 GPUXLC0 GPGKE1 GPXLE0 GPUXLE0 GPXLBA0
VR2 GPGKO2 GPXLO1 GPUXLO1 GPGKC2 GPXLC1 GPUXLC07 GPGKE2 GPXLE1 GPUXLE1 GPXLBA1
c
GPUXLC1
VR3 GPGKO3 GPXLO2 GPUXLO2 GPGKC3 GPXLC2 GPUXLC2 GPGKE3 GPXLE2 GPUXLE2 GPXLBA2 GPXLS60
VR4 GPGKO4 GPXLO3 GPUXLO3 GPGKC4 GPXLC3 GPUXLC3 GPGKE4 GPXLE3 GPUXLE3 GPXLAB3
VR5 GPGKO5 GPXLO4 GPUXLO4 GPGKC5 GPXLC4 GPUXLC4 GPGKE5 GPXLE4 GPUXLE4 GPXLAB4
GPGKO6 GPXLO5 GPUXLO5 GPGKC6 GPXLC5 GPUXLC5 GPGKE6 GPXLE5 GPUXLE5
