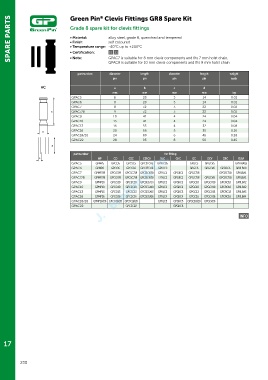

SPARE PARTS Green Pin Clevis Fittings GR8 Spare Kit
Grade 8 spare kit for clevis fittings

• Material:
alloy steel, grade 8, quenched and tempered
self coloured
• Finish:
• Temperature range: -40°C up to +200°C
• Certification:
2.1 3.1

• Note:
GPAC9 is suitable for 10 mm clevis components and fits 9 mm hoist chain
length
length
diameter
diameter
partnumber GPAC7 is suitable for 8 mm clevis components and fits 7 mm hoist chain, weight
pin pin pin pin each
AC a b c d
mm mm mm mm kg
GPAC5 6 28 3 14 0.01
GPAC6 8 28 3 14 0.01
GPAC7 8 32 3 22 0.02
b GPAC7/8 9 32 3 22 0.02
GPAC9 10 41 4 24 0.04
GPAC10 13 41 4 24 0.04
GPAC13 16 53 4 32 0.08
GPAC16 20 66 5 35 0.16
a
GPAC18/20 24 80 6 45 0.28
GPAC22 28 95 8 50 0.45
d
partnumber for fitting
c MP CO CSC CSECA XLC GKC GC GCV CRC XLBA
GPAC5 GPMP5 GPCO5 GPCSC5 GPCSECA5 GPXLC05 GPGC5 GPGCV5 GPXLBA05
GPAC6 GPMP6 GPCO6 GPCSC6 GPCSECA6 GPXLC0 GPGC6 GPGCV6 GPCRC6 GPXLBA0
GPAC7 GPMP7/8 GPCO7/8 GPCSC7/8 GPCSECA7/8 GPXLC1 GPGKC1 GPGC7/8 GPCRC7/8 GPXLBA1
GPAC7/8 GPMP7/8 GPCO7/8 GPCSC7/8 GPCSECA7/8 GPXLC1 GPGKC1 GPGC7/8 GPGCV8 GPCRC7/8 GPXLBA1
GPAC9 GPMP10 GPCO10 GPCSC10 GPCSECA10 GPXLC2 GPGKC2 GPGC10 GPGCV10 GPCRC10 GPXLBA2
GPAC10 GPMP10 GPCO10 GPCSC10 GPCSECA10 GPXLC2 GPGKC2 GPGC10 GPGCV10 GPCRC10 GPXLBA2
GPAC13 GPMP13 GPCO13 GPCSC13 GPCSECA13 GPXLC3 GPGKC3 GPGC13 GPGCV13 GPCRC13 GPXLBA3
GPAC16 GPMP16 GPCO16 GPCSC16 GPCSECA16 GPXLC4 GPGKC4 GPGC16 GPGCV16 GPCRC16 GPXLBA4
GPAC18/20 GPMP18/20 GPCO18/20 GPCSC18/20 GPXLC5 GPGKC5 GPGC18/20 GPGCV20
GPAC22 GPCSC22 GPGKC6
