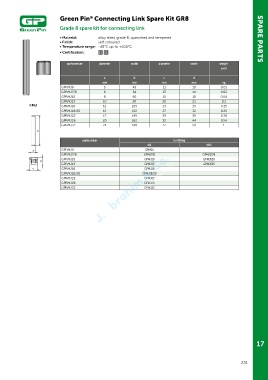

Page 231 - Green Pin Product Catalogue 2019_EN

Green Pin Connecting Link Spare Kit GR8
®
Grade 8 spare kit for connecting link

• Material: alloy steel, grade 8, quenched and tempered SPARE PARTS
• Finish: self coloured
• Temperature range: -40°C up to +200°C
• Certification: 2.1 3.1

partnumber diameter width diameter width weight
each

a b c d
mm mm mm mm kg
GPRMJ6 5 43 11 10 0.01
GPRMJ7/8 6 54 13 14 0.02
GPRMJ10 8 66 15 18 0.04
GPRMJ13 10 84 20 21 0.1
RMJ GPRMJ16 12 105 23 25 0.15
GPRMJ18/20 15 122 27 32 0.25
GPRMJ22 17 145 29 39 0.38
GPRMJ26 20 162 32 44 0.54
GPRMJ32 24 198 37 50 1
b
partnumber for fitting
MJ MJS
a GPRMJ6 GPMJ6
GPRMJ7/8 GPMJ7/8 GPMJS7/8
GPRMJ10 GPMJ10 GPMJS10
d
GPRMJ13 GPMJ13 GPMJS13
c GPRMJ16 GPMJ16
GPRMJ18/20 GPMJ18/20
GPRMJ22 GPMJ22
GPRMJ26 GPMJ26
GPRMJ32 GPMJ32
