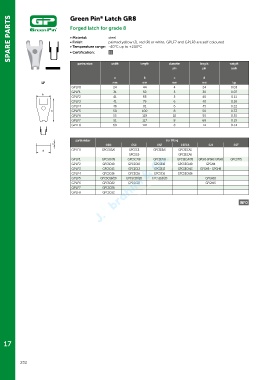

Page 232 - Green Pin Product Catalogue 2019_EN

SPARE PARTS Green Pin Latch GR8
®
Forged latch for grade 8

steel
• Material:
• Finish:
painted yellow (J), red (R) or white. GPLF7 and GPLF8 are self coloured
• Temperature range: -40°C up to +200°C
• Certification:
partnumber 2.1 width length diameter length weight
pin pin each

a b c d
LF mm mm mm mm kg
GPLF0 24 44 4 24 0.03
GPLF1 31 59 5 30 0.07
a
GPLF2 41 65 5 40 0.11
GPLF3 41 79 6 40 0.18
GPLF4 46 81 6 45 0.22
b GPLF5 50 100 8 50 0.33
GPLF6 55 119 10 55 0.55
GPLF7 51 117 8 68 0.19
GPLF8 60 141 8 74 0.34

partnumber for fitting
c CSO CSC CSE CSECA GH CST
d GPLF0 GPCSO5/6 GPCSC5 GPCSE5/6 GPCSECA5
GPCSC6 GPCSECA6
GPLF1 GPCSO7/8 GPCSC7/8 GPCSE7/8 GPCSECA7/8 GPGH1-GPGH2-GPGH3 GPCST75
GPLF2 GPCSO10 GPCSC10 GPCSE10 GPCSECA10 GPGH4
GPLF3 GPCSO13 GPCSC13 GPCSE13 GPCSECA13 GPGH5 - GPGH8
GPLF4 GPCSO16 GPCSC16 GPCSE16 GPCSECA16
GPLF5 GPCSO18/20 GPCSC18/20 GPCSE18/20 GPGH10
GPLF6 GPCSO22 GPCSC22 GPGH15
GPLF7 GPCSO26
GPLF8 GPCSO32

INFO
