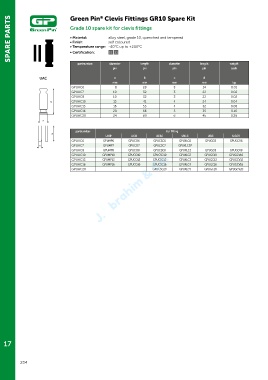

Page 234 - Green Pin Product Catalogue 2019_EN

SPARE PARTS Green Pin Clevis Fittings GR10 Spare Kit
®
Grade 10 spare kit for clevis fittings

• Material:
alloy steel, grade 10, quenched and tempered
self coloured
• Finish:
• Temperature range: -40°C up to +200°C
• Certification:

diameter
partnumber 2.1 3.1 length diameter length weight
pin pin pin pin each
UAC a b c d
mm mm mm mm kg
GPUAC6 8 28 3 14 0.01
GPUAC7 10 32 3 22 0.02
GPUAC8 10 32 3 22 0.02
b GPUAC10 13 41 4 24 0.04
GPUAC13 16 53 4 32 0.08
GPUAC16 20 66 5 35 0.16
GPUAC20 24 80 6 45 0.28
a

partnumber for fitting
d
UMP UCO UCSC UXLC UGC UGCV
GPUAC6 GPUMP6 GPUCO6 GPUCSC6 GPUXLC0 GPUGC6 GPUGCV6
c GPUAC7 GPUMP7 GPUCO7 GPUCSC7 GPUXLC07
GPUAC8 GPUMP8 GPUCO8 GPUCSC8 GPUXLC1 GPUGC8 GPUGCV8
GPUAC10 GPUMP10 GPUCO10 GPUCSC10 GPUXLC2 GPUGC10 GPUGCV10
GPUAC13 GPUMP13 GPUCO13 GPUCSC13 GPUXLC3 GPUGC13 GPUGCV13
GPUAC16 GPUMP16 GPUCO16 GPUCSC16 GPUXLC4 GPUGC16 GPUGCV16
GPUAC20 GPUCSC20 GPUXLC5 GPUGC20 GPUGCV20
