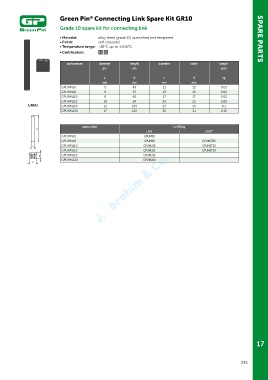

Green Pin Connecting Link Spare Kit GR10
®
Grade 10 spare kit for connecting link

• Material: alloy steel, grade 10, quenched and tempered SPARE PARTS
• Finish: self coloured
• Temperature range: -40°C up to +200°C
• Certification: 2.1 3.1

partnumber diameter length diameter width weight
pin pin each

a b c d kg
mm mm mm mm
GPURMJ6 5 43 11 12 0.01
GPURMJ8 6 57 13 15 0.02
GPURMJ10 8 66 17 17 0.02
GPURMJ13 10 84 20 22 0.05
URMJ GPURMJ16 12 105 25 25 0.1
GPURMJ20 17 122 32 31 0.15

partnumber for fitting
b
UMJ UMJT
GPURMJ6 GPUMJ6
GPURMJ8 GPUMJ8 GPUMJT15
a GPURMJ10 GPUMJ10 GPUMJT20
GPURMJ13 GPUMJ13 GPUMJT30
d GPURMJ16 GPUMJ16
GPURMJ20 GPUMJ20
c
