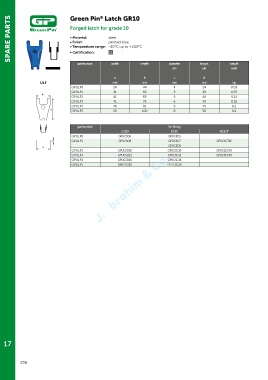

Page 236 - Green Pin Product Catalogue 2019_EN
P. 236
®
SPARE PARTS Green Pin Latch GR10
Forged latch for grade 10
steel
• Material:
• Finish:
painted blue
• Temperature range: -40°C up to +200°C
• Certification:
partnumber 2.1 width length diameter length weight
pin pin each
a b c d
ULF mm mm mm mm kg
GPULF0 24 44 4 24 0.03
GPULF1 31 59 5 30 0.07
a
GPULF2 41 65 5 40 0.11
GPULF3 41 79 6 40 0.18
GPULF4 46 81 6 45 0.2
b GPULF5 50 100 8 50 0.4
partnumber for fitting
UCSO UCSC UCSCT
GPULF0 GPUCSO6 GPUCSC6
c GPULF1 GPUCSO8 GPUCSC7 GPUCSCT15
GPUCSC8
d
GPULF2 GPUCSO10 GPUCSC10 GPUCSCT20
GPULF3 GPUCSO13 GPUCSC13 GPUCSCT30
GPULF4 GPUCSO16 GPUCSC16
GPULF5 GPUCSO20 GPUCSC20
17
236
