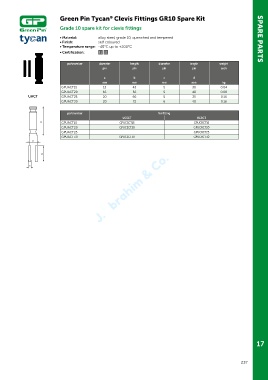

Page 237 - Green Pin Product Catalogue 2019_EN

Green Pin Tycan Clevis Fittings GR10 Spare Kit
®
Grade 10 spare kit for clevis fittings

• Material: alloy steel, grade 10, quenched and tempered SPARE PARTS
• Finish: self coloured
• Temperature range: -40°C up to +200°C
• Certification: 2.1 3.1

partnumber diameter length diameter length weight
pin pin pin pin each

a b c d
mm mm mm mm kg
GPUACT15 13 43 5 30 0.04
GPUACT20 16 56 5 40 0.08
UACT GPUACT25 20 66 5 35 0.16
GPUACT30 20 72 6 40 0.16

partnumber for fitting
UCSCT UCRCT
b GPUACT15 GPUCSCT15 GPUCRCT15
GPUACT20 GPUCSCT20 GPUCRCT20
GPUACT25 GPUCRCT25
GPUACT30 GPUCSCT30 GPUCRCT30
a

d

c
