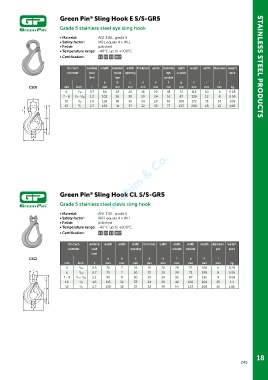

Page 245 - Green Pin Product Catalogue 2019_EN

Green Pin Sling Hook E S/S-GR5
®
Grade 5 stainless steel eye sling hook

• Material: AISI 316L, grade 5
• Safety factor: MBL equals 4 x WLL
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b

for chain working length diameter width thickness width diameter width length width thickness weight STAINLESS STEEL PRODUCTS
diameter load inside opening eye outside each
limit eye outside
a b c d e f g h i j
CSOI mm inch t mm mm mm mm mm mm mm mm mm mm kg
6 7 /32 0.7 84 23 26 15 20 43 72 114 10 6 0.28
5
7 - 8 1 /4 - /16 1.2 103 26 30 20 24 51 87 139 12 8 0.56
f
b 10 3 /8 1.6 128 35 33 24 29 65 106 172 15 10 1.09
i 13 1 /2 2.7 152 41 37 32 39 77 133 209 18 12 1.98
j
a h
c

e
d
g

Green Pin Sling Hook CL S/S-GR5
®
Grade 5 stainless steel clevis sling hook

• Material: AISI 316L, grade 5
• Safety factor: MBL equals 4 x WLL
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b

for chain working length width width thickness width width width length diameter weight
diameter load opening outside outside pin each
limit
CSCI a b c d e f g h i
mm inch t mm mm mm mm mm mm mm mm mm kg
5 3 /16 0.5 76 7 26 15 20 28 72 108 6 0.29
f
b 6 7 /32 0.7 75 7 26 15 20 28 72 108 8 0.29
7 - 8 1 5 1.2 95 9 30 20 24 32 87 136 9 0.58
i /4 - /16
10 3 /8 1.6 113 12 33 24 29 42 106 164 13 1.1
13 1 /2 2.7 138 15 37 32 39 54 133 208 16 1.86
a h
c
e
d
g

18
245
