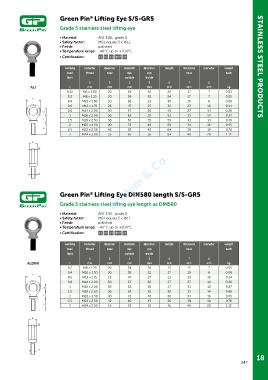

Green Pin Lifting Eye S/S-GR5
®
Grade 5 stainless steel lifting eye

• Material: AISI 316L, grade 5
• Safety factor: MBL equals 5 x WLL
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b CE

working diameter diameter diameter diameter length thickness diameter weight STAINLESS STEEL PRODUCTS
load thread base eye eye base each
limit outside inside
a b c d e f g
ALI t mm mm mm mm mm mm mm kg
0.12 M6 x 1.00 20 34 20 20 17 7 0.05
0.2 M8 x 1.25 20 34 20 24 17 7 0.05
c
0.4 M10 x 1.50 20 38 22 30 19 8 0.08
c
0.6 M12 x 1.75 25 47 27 36 23 10 0.14
0.8 M14 x 2.00 30 57 30 40 27 14 0.26
d
d 1 M16 x 2.00 36 63 35 53 31 14 0.37
f 1.5 M18 x 2.50 36 63 35 53 31 14 0.49
f
2 M20 x 2.50 40 72 40 58 34 16 0.55
e
2.5 M22 x 2.50 42 82 45 64 38 19 0.78
e
3 M24 x 3.00 55 95 55 84 40 20 1.12
b
b g
g

a
a

Green Pin Lifting Eye DIN580 length S/S-GR5
®
Grade 5 stainless steel lifting eye length as DIN580

• Material: AISI 316L, grade 5
• Safety factor: MBL equals 5 x WLL
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b CE

working diameter diameter diameter diameter length thickness diameter weight
load thread base eye eye base each
limit outside inside
a b c d e f g
ALDINI t mm mm mm mm mm mm mm kg
0.2 M8 x 1.25 20 34 20 13 17 7 0.05
0.4 M10 x 1.50 20 38 22 17 19 8 0.08
c
0.6 M12 x 1.75 25 47 27 21 23 10 0.14
c
0.8 M14 x 2.00 30 57 30 27 27 14 0.26
1 M16 x 2.00 36 63 35 27 31 14 0.37
d
d 1.5 M18 x 2.50 36 63 35 30 31 14 0.49
f 2 M20 x 2.50 40 72 40 30 34 16 0.55
f
2.5 M22 x 2.50 42 82 45 36 38 19 0.78
e
3 M24 x 3.00 55 95 55 36 40 20 1.12
e
b
b g
g

a
a
