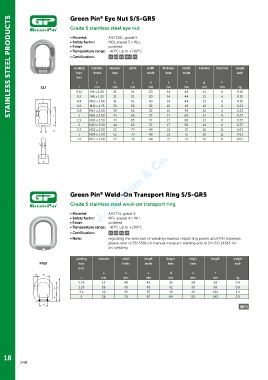

Green Pin Eye Nut S/S-GR5
STAINLESS STEEL PRODUCTS
®
Grade 5 stainless steel eye nut

• Material: AISI 316L, grade 5
• Safety factor: MBL equals 5 x WLL
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b CE

working diameter diameter width width thickness length diameter thickness weight
load thread base inside base inside each
limit
a b c d e f g h
ELI t mm mm mm mm mm mm mm mm kg
0.12 M6 x 1.00 31 51 30 14 44 11 6 0.15
0.2 M8 x 1.25 31 51 30 14 44 11 6 0.15
c
d 0.4 M10 x 1.50 31 51 30 14 44 11 6 0.15
0.6 M12 x 1.75 39 56 32 15 48 12 6 0.23
g
0.8 M14 x 2.00 39 56 32 15 48 12 6 0.23
f 1 M16 x 2.00 44 65 37 17 60 14 8 0.37
1.5 M18 x 2.50 44 65 37 17 60 14 8 0.37
e 2 M20 x 2.50 44 65 37 17 60 14 8 0.37
2.5 M22 x 2.50 52 79 48 21 75 16 11 0.63
a
3 M24 x 3.00 52 79 48 21 75 16 11 0.63
3.5 M27 x 3.00 52 79 48 21 75 16 11 0.63
h

b

Green Pin Weld-On Transport Ring S/S-GR5
®
Grade 5 stainless steel weld-on transport ring

• Material: AISI 316, grade 5
• Safety factor: MBL equals 4 x WLL
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 CE

• Note: regarding the selection of welding material, respecting parent and PASI materials,
please refer to EN 3581 for manual metal arc welding and to EN ISO 14343 for
arc welding
working diameter width length length height length weight
PASI load inside inside base base each
limit
a b c d e f
a b
t mm mm mm mm mm mm kg
0.75 13 40 42 35 28 83 0.4
c f 1.25 18 45 48 42 33 99 0.8
3.2 22 55 57 49 42 121 1.4
e 5 26 70 67 64 50 143 2.5
d
