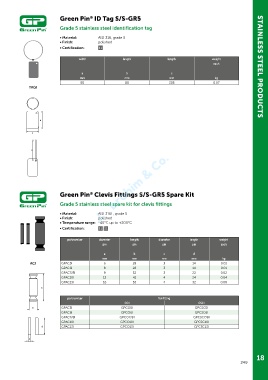

P. 249
Green Pin ID Tag S/S-GR5
®
Grade 5 stainless steel identification tag
• Material: AISI 316, grade 5
• Finish: polished
• Certification: 2.1
width length length weight
each STAINLESS STEEL PRODUCTS
a b c
mm mm mm kg
50 80 305 0.07
TAGI
b
b
a
a
c
c
Green Pin Clevis Fittings S/S-GR5 Spare Kit
®
Grade 5 stainless steel spare kit for clevis fittings
• Material: AISI 316L, grade 5
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 3.1
partnumber diameter length diameter length weight
pin pin pin pin each
a b c d
mm mm mm mm kg
ACI GPAC5I 6 28 3 14 0.01
GPAC6I 8 28 3 14 0.01
GPAC7/8I 9 32 3 22 0.02
GPAC10I 13 41 4 24 0.04
GPAC13I 16 53 4 32 0.08
b
b
partnumber for fitting
COI CSCI
a GPAC5I GPCO5I GPCSC5I
a GPAC6I GPCO6I GPCSC6I
GPAC7/8I GPCO7/8I GPCSC7/8I
d GPAC10I GPCO10I GPCSC10I
d GPAC13I GPCO13I GPCSC13I
c
c
18
249
