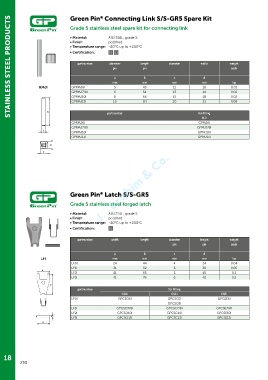

Green Pin Connecting Link S/S-GR5 Spare Kit
®
STAINLESS STEEL PRODUCTS
Grade 5 stainless steel spare kit for connecting link

• Material: AISI 316L, grade 5
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 3.1

partnumber diameter length diameter width weight
pin pin each

a b c d
mm mm mm mm kg
RMJI GPRMJ6I 5 43 11 10 0.01
GPRMJ7/8I 6 54 13 14 0.02
GPRMJ10I 8 66 15 18 0.02
GPRMJ13I 10 84 20 21 0.08

b partnumber for fitting
b
MJI
GPRMJ6I GPMJ6I
GPRMJ7/8I GPMJ7/8I
a
GPRMJ10I GPMJ10I
a
GPRMJ13I GPMJ13I
d
d
c
c

Green Pin Latch S/S-GR5
®
Grade 5 stainless steel forged latch

• Material: AISI 316L, grade 5
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1

partnumber width length diameter length weight
pin pin each

a b c d
LFI mm mm mm mm kg
LF0I 24 44 4 24 0.04
LF1I 31 59 5 30 0.05
a
a LF2I 41 65 5 40 0.1
LF3I 41 79 6 40 0.2
b
b
partnumber for fitting
CSOI CSCI CSEI
LF0I GPCSO6I GPCSC5I GPCSE6I
GPCSC6I
LF1I GPCSO7/8I GPCSC7/8I GPCSE7/8I
LF2I GPCSO10I GPCSC10I GPCSE10I
c
c LF3I GPCSO13I GPCSC13I GPCSE13I
d
d
