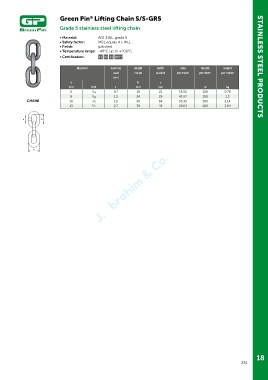

Page 251 - Green Pin Product Catalogue 2019_EN
P. 251
Green Pin Lifting Chain S/S-GR5
®
Grade 5 stainless steel lifting chain
• Material: AISI 316L, grade 5
• Safety factor: MBL equals 4 x WLL
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MTC b
diameter working length width links length weight STAINLESS STEEL PRODUCTS
load inside outside per meter per drum per meter
limit
a b c
mm inch t mm mm m kg
6 7 /32 0.7 18 21 55.56 100 0.78
8 5 /16 1.2 24 29 41.67 100 1.3
CHAINI 10 3 /8 1.6 30 34 33.33 100 2.14
13 1 /2 2.7 39 45 25.64 100 3.64
a b
c
18
251
