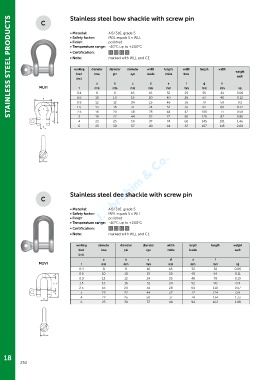

Page 252 - Green Pin Product Catalogue 2019_EN

Stainless steel bow shackle with screw pin
STAINLESS STEEL PRODUCTS

• Material: AISI 316, grade 5
• Safety factor: MBL equals 5 x WLL
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 CE

• Note: marked with WLL and CE
working diameter diameter diameter width length width length width weight
load bow pin eye inside inside bow each
limit
a b c d e f g h
MLVI t mm mm mm mm mm mm mm mm kg
0.4 8 8 16 16 32 25 56 41 0.06
0.6 10 10 19 20 40 28 67 48 0.12
h
h a 0.9 12 12 24 25 48 36 79 59 0.2
a 1.5 13 16 31 24 52 35 87 60 0.32
f
eg 2.5 16 20 38 28 64 42 108 71 0.58
f
eg 3 19 22 44 32 72 50 125 87 0.96
b 4 22 25 50 37 74 60 145 101 1.46
d b 6 25 30 57 40 94 67 157 115 2.09
d

c
c

Stainless steel dee shackle with screw pin

• Material: AISI 316, grade 5
• Safety factor: MBL equals 5 x WLL
• Finish: polished
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 CE

• Note: marked with WLL and CE
working diameter diameter diameter width length length weight
load bow pin eye inside inside each
limit
a b c d e f
MDVI t mm mm mm mm mm mm kg
0.4 8 8 16 16 32 52 0.06
0.6 10 10 19 20 40 64 0.11
a
0.9 12 12 24 25 48 78 0.19
a
e f 1.5 13 16 31 24 52 90 0.3
e f 2.5 16 20 38 28 64 110 0.57
b 3 19 22 44 32 72 124 0.9
b 4 22 25 50 37 74 134 1.33
d
6 25 30 57 40 94 162 1.98
d

c
c

18
252
