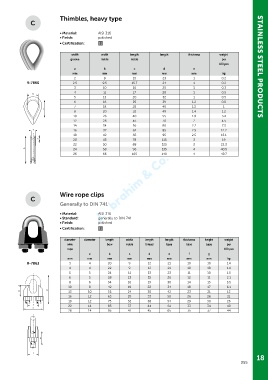

Page 255 - Green Pin Product Catalogue 2019_EN

Thimbles, heavy type

• Material: AISI 316
• Finish: polished
• Certification: 2.1

width width length length thickness weight
groove inside inside per
100 pcs
a b c d e STAINLESS STEEL PRODUCTS
mm mm mm mm mm kg
2 9 15 23 1 0.2
R-7860 2.5 9.5 15.7 24 1 0.2
3 10 16 25 1 0.3
4 11 17 28 1 0.5
5 13 20 32 1 0.5
6 16 25 39 1.2 0.8
7 18 28 40 1.2 1
8 20 32 49 1.4 1.2
10 26 40 55 1.9 3.4
12 28 45 70 2 4.5
14 34 56 80 2.2 7.3
16 37 62 85 2.5 12.2
18 42 65 95 2.5 15.1
20 45 78 115 3 19
22 50 88 125 3 22.3
24 58 96 135 4 40.5
26 66 105 140 4 49.7

Wire rope clips

Generally to DIN 741

• Material: AISI 316
• Standard: generally to DIN 741
• Finish: polished
• Certification: 2.1

diameter diameter length width length length thickness height weight
wire bow inside thread base base base per
rope 100 pcs
a b c d e f g
mm mm mm mm mm mm mm mm kg
R-7863 3 4 20 9 12 21 10 10 1.4
4 4 22 9 12 21 10 10 1.4
5 5 24 11 13 23 11 10 1.5
6 5 28 13 15 26 12 11 2.1
8 6 34 16 19 30 14 15 3.5
10 8 42 19 22 34 18 17 6.1
13 10 55 24 30 42 23 21 13
16 12 63 29 33 50 26 26 21
19 12 75 32 38 54 29 30 26
22 14 85 37 44 61 33 34 40
26 14 95 41 45 65 35 37 44
