P. 256

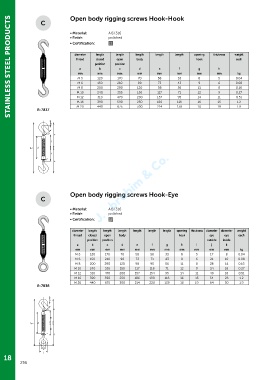

Open body rigging screws Hook-Hook
STAINLESS STEEL PRODUCTS
• Material: AISI 316
• Finish: polished
• Certification: 2.1
diameter length length length length length opening thickness weight
thread closed open body hook each
position position
a b c d e f g h
mm mm mm mm mm mm mm mm kg
M 5 120 170 70 58 33 8 5 0.04
M 6 150 210 90 73 43 9 6 0.08
M 8 200 290 120 98 56 11 8 0.16
M 10 240 355 150 117 71 12 9 0.27
M 12 310 470 200 157 95 14 11 0.51
M 16 390 590 250 186 116 16 15 1.2
M 20 440 675 300 214 139 18 19 1.9
R-7837
Open body rigging screws Hook-Eye
• Material: AISI 316
• Finish: polished
• Certification: 2.1
diameter length length length length length length opening thickness diameter diameter weight
thread closed open body hook eye eye each
position position outside inside
a b c d e f g h i j k
mm mm mm mm mm mm mm mm mm mm mm kg
M 5 120 170 70 58 56 33 8 5 17 8 0.04
M 6 150 210 90 73 71 43 9 6 21 10 0.08
M 8 200 290 120 98 95 56 11 8 28 14 0.16
M 10 240 355 150 117 118 71 12 9 34 16 0.27
M 12 310 470 200 157 154 95 14 11 40 18 0.51
M 16 390 590 250 186 190 116 16 15 54 26 1.2
M 20 440 675 300 214 220 139 18 19 64 30 1.9
R-7838
