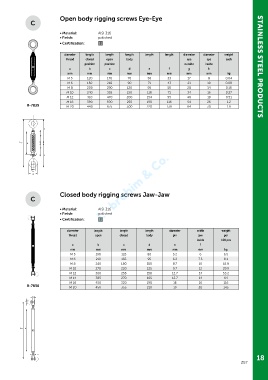

Open body rigging screws Eye-Eye

• Material: AISI 316
• Finish: polished
• Certification: 2.1

diameter length length length length length diameter diameter weight
thread closed open body eye eye each
position position outside inside
a b c d e f g h STAINLESS STEEL PRODUCTS
mm mm mm mm mm mm mm mm kg
M 5 120 170 70 56 33 17 8 0.04
M 6 150 210 90 71 43 21 10 0.08
M 8 200 290 120 95 56 28 14 0.16
M 10 240 355 150 118 71 34 16 0.27
M 12 310 470 200 154 95 40 18 0.51
M 16 390 590 250 190 116 54 26 1.2
R-7839 M 20 440 675 300 220 139 64 30 1.9

Closed body rigging screws Jaw-Jaw

• Material: AISI 316
• Finish: polished
• Certification: 2.1

diameter length length length diameter width weight
thread open closed body pin jaw per
inside 100 pcs
a b c d e f
mm mm mm mm mm mm kg
M 5 190 125 80 5.2 6 6.5
M 6 210 155 95 6.2 7.5 8.1
M 8 240 180 105 8.7 10 15.9
M 10 270 220 125 9.7 12 29.9
M 12 360 255 150 12.7 14 53.2
M 14 385 270 165 12.7 14 64
M 16 450 320 190 16 16 116
R-7830 M 20 450 355 210 19 20 145
