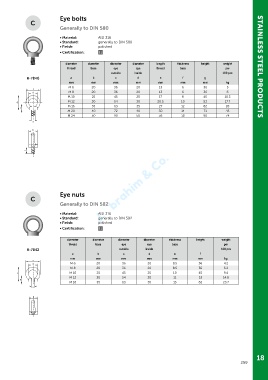

Page 259 - Green Pin Product Catalogue 2019_EN

Eye bolts

Generally to DIN 580

• Material: AISI 316
• Standard: generally to DIN 580
• Finish: polished
• Certification: 2.1

diameter diameter diameter diameter length thickness height weight
thread base eye eye thread base per STAINLESS STEEL PRODUCTS
outside inside 100 pcs
R-7840 a b c d e f g
mm mm mm mm mm mm mm kg
M 6 20 36 20 13 6 36 3
M 8 20 36 20 13 6 36 6
M 10 25 45 25 17 8 45 10.3
M 12 30 54 30 20.5 10 53 17.7
M 16 35 63 35 27 12 62 28
M 20 40 72 40 30 14 71 45
M 24 50 90 50 36 18 90 74

Eye nuts

Generally to DIN 582

• Material: AISI 316
• Standard: generally to DIN 582
• Finish: polished
• Certification: 2.1

diameter diameter diameter diameter thickness height weight
thread base eye eye base per
R-7842 outside inside 100 pcs
a b c d e f
mm mm mm mm mm mm kg
M 6 20 36 20 8.5 36 4.2
M 8 20 36 20 8.5 36 5.2
M 10 25 45 25 10 45 9.4
M 12 30 54 30 11 53 14.8
M 16 35 63 35 13 62 23.7
