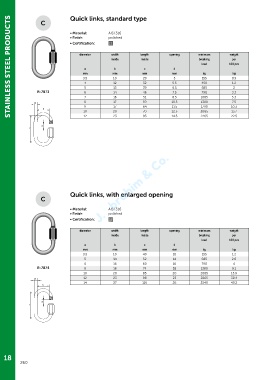

P. 260
Quick links, standard type
STAINLESS STEEL PRODUCTS
• Material: AISI 316
• Finish: polished
• Certification: 2.1
diameter width length opening minimum weight
inside inside breaking per
load 100 pcs
a b c d
mm mm mm mm kg kg
3.5 10 29 5 155 0.9
4 12 32 5.5 450 1.2
5 13 39 6.5 585 2
R-7873 6 14 46 7.5 790 3.3
7 16 51 8.5 1085 5.3
8 17 59 10.5 1380 7.5
9 17 64 11.5 1790 10.3
10 20 70 12.5 2085 13.7
12 23 83 14.5 2265 22.5
Quick links, with enlarged opening
• Material: AISI 316
• Finish: polished
• Certification: 2.1
diameter width length opening minimum weight
inside inside breaking per
load 100 pcs
a b c d
mm mm mm mm kg kg
3.5 10 40 10 155 1.2
5 14 52 14 585 2.6
6 16 60 16 790 4
R-7874 8 18 74 18 1380 9.1
10 20 85 20 2085 15.9
12 23 98 23 2265 30.4
14 27 116 26 2540 40.2
18
