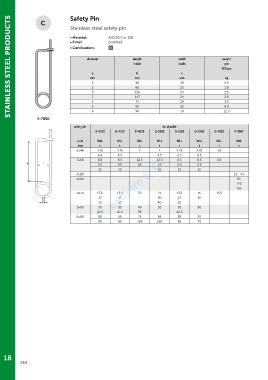

P. 264
Safety Pin
STAINLESS STEEL PRODUCTS
Stainless steel safety pin
• Material: AISI 304 or 316
• Finish: polished
• Certification: 2.1
diameter length width weight
inside inside per
100 pcs
a b c
mm mm mm kg
2 46 18 0.5
3 66 23 1.8
3 116 24 2.5
3 147 24 2.8
4 74 29 3.9
5 95 22 6.9
6 90 39 12.5
R-7850
safety pin for shackle
G-4163 G-4153 P-6033 G-5263 G-5163 G-4263 G-4553 P-5367
a x b WLL WLL WLL WLL WLL WLL WLL WLL
mm t t t t t t t t
2x46 4.75 4.75 7 7 4.75 4.75 4.6
6.5 6.5 9.5 6.5 6.5
3x66 8.5 8.5 12.5 12.5 8.5 8.5 8.6
9.5 9.5 18 15 9.5 9.5
12 12 18 12 12
3x116 12 - 55
3x147 85
120
150
4x74 13.5 13.5 30 21 13.5 16 15.5
17 17 30 17 25
25 25 40 25
5x95 35 35 40 55 35 30
42.5 42.5 55 42.5
6x90 55 55 75 85 55 55
85 85 125 120 85 75
18
