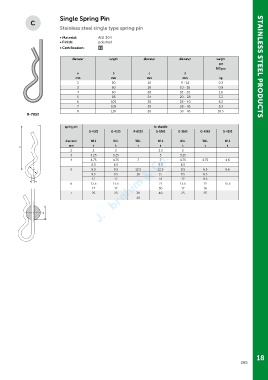

Page 265 - Green Pin Product Catalogue 2019_EN

Single Spring Pin

Stainless steel single type spring pin

• Material: AISI 304
• Finish: polished
• Certification: 2.1

diameter length diameter diameter weight
per
100 pcs STAINLESS STEEL PRODUCTS
a b c d
mm mm mm mm kg
2 50 10 9 - 14 0.3
3 60 18 10 - 16 0.9
4 60 20 16 - 20 1.6
5 85 24 20 - 28 3.3
6 105 30 28 - 40 6.2
7 105 30 28 - 45 8.3
8 110 28 30 - 45 10.5
R-7852

spring pin for shackle
G-4163 G-4153 P-6033 G-5263 G-5163 G-4263 G-4553
diameter WLL WLL WLL WLL WLL WLL WLL
mm t t t t t t t
2 2 2 3.3 2
3 3.25 3.25 5 3.25
4 4.75 4.75 7 7 4.75 4.75 4.6
6.5 6.5 9.5 6.5
5 8.5 8.5 12.5 12.5 8.5 6.5 8.6
9.5 9.5 18 15 9.5 8.5
12 12 18 12 9.5
6 13.5 13.5 21 13.5 12 15.5
17 17 30 17 16
7 25 25 30 40 25 25
40

18
