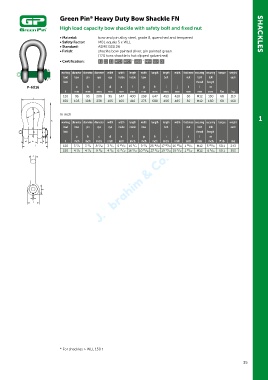

Page 35 - Green Pin Product Catalogue 2019_EN

Green Pin Heavy Duty Bow Shackle FN
®
High load capacity bow shackle with safety bolt and fixed nut

• Material: bow and pin alloy steel, grade 8, quenched and tempered SHACKLES
• Safety Factor: MBL equals 5 x WLL
• Standard: ASME B30.26
• Finish: shackle bow painted silver, pin painted green
(120 tons shackle is hot dipped galvanized)
• Certification: 2.1 2.2 3.1 MTC a MTC b * LROS * MPI a US a CE

working diameter diameter diameter width width length width length length width thickness securing securing torque weight
load bow pin eye eye inside inside bow bolt nut bolt bolt each
limit thread length
P-6016 a b c d e f g h i j k l m
t mm mm mm mm mm mm mm mm mm mm mm mm mm Nm kg
120 95 95 208 95 147 400 238 647 453 428 50 M12 150 68 110
150 105 108 238 105 169 410 275 688 496 485 50 M12 160 68 160

In inch
1
working diameter diameter diameter width width length width length length width thickness securing securing torque weight
load bow pin eye eye inside inside bow bolt nut bolt bolt each
limit m thread length
a b c d e f g h i j k l m
l t inch inch inch inch inch inch inch inch inch inch inch mm inch ft lb lbs
120 3 /4 3 /4 8 /16 3 /4 5 /32 15 /4 9 /8 25 /32 17 /32 16 /32 1 /32 M12 5 /32 50.1 243
27
29
31
25
3
15
27
3
3
3
3
3
17
3
31
5
150 4 /8 4 /4 9 /8 4 /8 6 /32 16 /32 10 /16 27 /32 19 /32 19 /32 1 /32 M12 6 /16 50.1 353
3
21
3
1
5
13
1
1
m
l

* For shackles ≥ WLL 150 t

35
