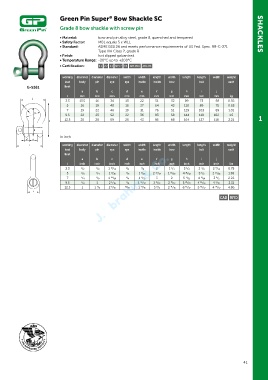

Page 41 - Green Pin Product Catalogue 2019_EN

Green Pin Super Bow Shackle SC
®
Grade 8 bow shackle with screw pin

• Material: bow and pin alloy steel, grade 8, quenched and tempered SHACKLES
• Safety Factor: MBL equals 5 x WLL
• Standard: ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271
Type IVA Class 2, grade B
• Finish: hot dipped galvanized
• Temperature Range: -20°C up to +200°C
• Certification: 2.1 2.2 3.1 MTC a CE ABS PDA ABS MA

working diameter diameter diameter width width length width length length width weight
load body pin eye eye inside inside bow bolt each
G-5261 limit
a b c d e f g h i j
t mm mm mm mm mm mm mm mm mm mm kg
3.3 13.5 16 34 13 22 51 32 89 73 58 0.36
5 16 19 40 16 27 64 43 110 89 75 0.63
7 19 22 46 19 31 76 51 129 103 89 1.01
9.5 22 25 52 22 36 83 58 144 119 102 1.5
12.5 25 28 59 25 43 95 68 164 137 118 2.21 1

In inch

working diameter diameter diameter width width length width length length width weight
load body pin eye eye inside inside bow bolt each
limit
a b c d e f g h i j
t inch inch inch inch inch inch inch inch inch inch lbs
3.3 1 /2 5 /8 1 /32 1 /2 7 /8 2 1 /4 3 /2 2 /8 2 /32 0.79
7
1
11
9
1
5 5 /8 3 /4 1 /16 5 /8 1 /16 2 /32 1 /16 4 /32 3 /2 2 /16 1.38
11
1
11
15
1
17
9
7 3 /4 7 /8 1 /16 3 /4 1 /32 3 2 5 /32 4 /16 3 /2 2.22
1
3
1
7
13
1
11
13
21
9
1
9.5 7 /8 1 2 /16 7 /8 1 /32 3 /32 2 /32 5 /32 4 /16 4 /32 3.31
9
12.5 1 1 /8 2 /16 31 /32 1 /16 3 /4 2 /16 6 /32 5 /32 4 /32 4.86
21
1
11
11
3
5
13
15
CAD RFID
