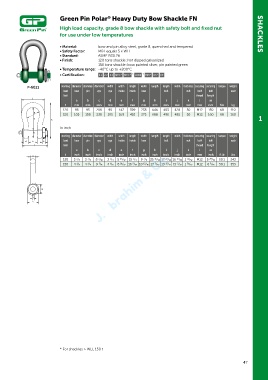

Green Pin Polar Heavy Duty Bow Shackle FN
®
High load capacity, grade 8 bow shackle with safety bolt and fixed nut
for use under low temperatures SHACKLES

• Material: bow and pin alloy steel, grade 8, quenched and tempered
• Safety Factor: MBL equals 5 x WLL
• Standard: ASME B30.26
• Finish: 120 tons shackle: hot dipped galvanized
150 tons shackle: bow painted silver, pin painted green
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MTC a MTC b * LROS * MPI a US a CE

P-6011 working diameter diameter diameter width width length width length length width thickness securing securing torque weight
load bow pin eye eye inside inside bow bolt nut bolt bolt each
limit thread length
a b c d e f g h i j k l m
t mm mm mm mm mm mm mm mm mm mm mm mm mm Nm kg
120 95 95 208 95 147 399 238 646 453 428 50 M12 150 68 110
150 105 108 238 105 169 410 275 688 496 485 50 M12 160 68 160
1

In inch
m
working diameter diameter diameter width width length width length length width thickness securing securing torque weight
l load bow pin eye eye inside inside bow bolt nut bolt bolt each
limit thread length
a b c d e f g h i j k l m
t inch inch inch inch inch inch inch inch inch inch inch mm inch ft lb lbs
120 3 /4 3 /4 8 /16 3 /4 5 /32 15 /4 9 /8 25 /32 17 /32 16 /32 1 /32 M12 5 /32 50.1 243
3
3
27
25
27
31
3
3
15
3
3
29
3
31
5
17
3
3
150 4 /8 4 /4 9 /8 4 /8 6 /32 16 /32 10 /16 27 /32 19 /32 19 /32 1 /32 M12 6 /16 50.1 353
1
1
1
5
13
21
m
l

* For shackles ≥ WLL 150 t
