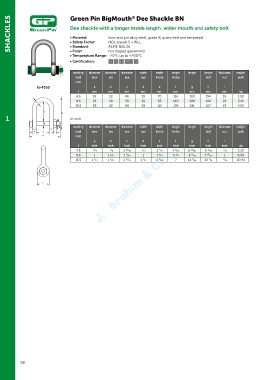

Page 50 - Green Pin Product Catalogue 2019_EN

SHACKLES Green Pin BigMouth Dee Shackle BN
®
Dee shackle with a longer inside length, wider mouth and safety bolt

• Material:
bow and pin alloy steel, grade 8, quenched and tempered
• Safety Factor:
MBL equals 5 x WLL
ASME B30.26
• Standard:
hot dipped galvanized
• Finish:
• Temperature Range: -20°C up to +200°C
• Certification: 2.1 2.2 3.1 MTC a CE

working diameter diameter diameter width width length length length thickness weight
load bow pin eye eye inside inside bolt nut each
limit
G-4553 a b c d e f g h i
t mm mm mm mm mm mm mm mm mm kg
4.6 19 22 46 19 70 116 169 154 19 1.50
8.6 25 28 59 25 83 140 208 190 25 3.15
15.5 38 42 88 38 115 178 281 257 19 9.50
1 In inch

working diameter diameter diameter width width length length length thickness weight
load bow pin eye eye inside inside bolt nut each
limit
a b c d e f g h i
t inch inch inch inch inch inch inch inch inch lbs
4.6 3 /4 7 /8 1 /16 3 /4 2 /4 4 /16 6 /32 6 /16 3 /4 3.30
9
13
1
3
21
3
1
1
1
8.6 1 1 /8 1 /16 1 3 /4 5 /2 8 /16 7 /32 1 6.90
15
5
15.5 1 /2 1 /8 1 /32 1 /2 4 /16 7 11 /16 10 /8 3 /4 20.94
1
1
5
1
15
9
1
