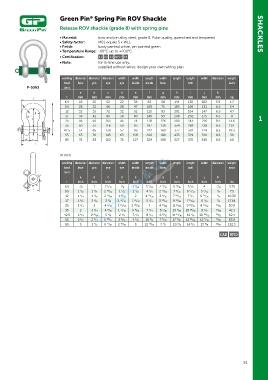

Page 51 - Green Pin Product Catalogue 2019_EN
P. 51
Green Pin Spring Pin ROV Shackle
®
Release ROV shackle (grade 8) with spring pins
• Material: bow and pin alloy steel, grade 8, Polar quality, quenched and tempered SHACKLES
• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification: 2.1 2.2 3.1 MTC a CE
• Note: for in-line use only.
supplied without wires; design your own wiring plan
working diameter diameter diameter width width length width length length width diameter weight
load bow pin eye eye inside inside bow bolt each
P-5363 limit
a b c d e f g h i j k
t mm mm mm mm mm mm mm mm mm mm mm kg
6.5 22 25 52 22 36 83 58 144 130 102 5.5 1.7
9.5 28 32 66 28 47 108 75 185 166 131 6.5 3.4
12 32 35 72 32 51 115 83 201 184 147 6.5 4.7
17 38 42 88 38 60 146 99 249 202 175 6.5 8 1
25 45 50 103 45 74 178 126 300 243 216 8.5 13.6
35 50 57 116 50 83 197 138 334 269 238 8.5 19.1
42.5 57 65 130 57 95 222 160 377 301 274 8.5 28.3
55 65 70 145 65 105 260 180 433 329 310 8.5 38
85 75 83 162 75 127 329 190 527 375 340 8.5 60
In inch
working diameter diameter diameter width width length width length length width diameter weight
load bow pin eye eye inside inside bow bolt each
limit
a b c d e f g h i j k
t inch inch inch inch inch inch inch inch inch inch inch lbs
6.5 7 /8 1 2 /32 7 /8 1 /16 3 /32 2 /32 5 /16 5 /8 4 7 /32 3.75
7
9
1
1
9
11
1
15
17
19
1
1
7
1
9
5
9.5 1 /8 1 /4 2 /32 1 /8 1 /8 4 /4 2 /16 7 /32 6 /32 5 /32 1 /4 7.5
12 1 /4 1 /8 2 /16 1 /32 2 4 /32 3 /32 7 /32 7 /4 5 /32 1 /4 10.36
17
9
29
9
1
3
25
1
13
13
7
15
1
11
17 1 /2 1 /8 3 /2 1 /32 2 /32 5 /4 3 /32 9 /16 7 /16 6 /8 1 /4 17.64
29
3
1
17
5
25 1 /4 2 4 /32 1 /32 2 /32 7 4 /16 11 /16 9 /32 8 /32 11 /32 30.0
17
25
1
19
15
29
13
3
3
7
9
5
1
35 2 2 /4 4 /16 1 /32 3 /32 7 /4 5 /16 13 /32 10 /32 9 /8 11 /32 42.1
19
3
9
31
42.5 2 /4 2 /16 5 /8 2 /4 3 /4 8 /4 6 /32 14 /16 11 /8 10 /32 11 /32 62.4
7
13
9
1
1
25
1
9
3
3
15
1
55 2 /2 2 /4 5 /32 2 /16 4 /8 10 /4 7 /32 17 /32 12 /16 12 /16 11 /32 83.8
3
1
3
1
9
3
3
23
3
11
15
85 3 3 /4 6 /32 2 /16 5 12 /16 7 /2 20 /4 14 /4 13 /8 11 /32 132.3
1
3
3
15
1
CAD RFID
