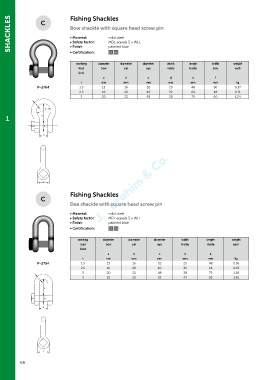

Page 66 - Green Pin Product Catalogue 2019_EN

SHACKLES Fishing Shackles

Bow shackle with square head screw pin

• Material:
mild steel
• Safety factor:
MBL equals 5 x WLL
• Finish:
painted blue
• Certification:

working diameter 2.1 2.2 diameter diameter width length width weight
load bow pin eye inside inside bow each
limit
a b c d e f
t mm mm mm mm mm mm kg
P-3764 1.5 13 16 32 25 48 36 0.37
2.5 16 20 40 32 64 48 0.71
3 20 22 48 38 79 60 1.24

1

Fishing Shackles

Dee shackle with square head screw pin

• Material: mild steel
• Safety factor: MBL equals 5 x WLL
• Finish: painted blue
• Certification: 2.1 2.2

working diameter diameter diameter width length weight
load bow pin eye inside inside each
limit
a b c d e
t mm mm mm mm mm kg
P-3754 1.5 13 16 32 25 48 0.36
2.5 16 20 40 32 64 0.69
3 20 22 48 38 75 1.18
4 22 25 53 44 83 1.61

66
