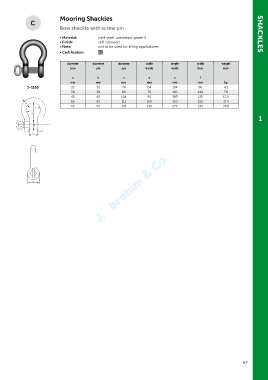

Page 67 - Green Pin Product Catalogue 2019_EN

Mooring Shackles

Bow shackle with screw pin

• Material: mild steel, untreated, grade 3 SHACKLES
• Finish: self coloured
• Note: not to be used for lifting applications
• Certification: 2.1

diameter diameter diameter width length width weight
bow pin eye inside inside bow each

a b c d e f
mm mm mm mm mm mm kg
S-1165 32 32 74 64 134 96 4.2
38 38 89 76 160 114 7.8
45 45 104 90 189 135 12.5
50 50 111 100 210 155 17.4
65 65 145 130 273 195 35.6
