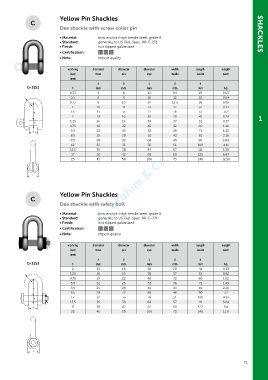

Yellow Pin Shackles

Dee shackle with screw collar pin

• Material: bow and pin high tensile steel, grade 6 SHACKLES
• Standard: generally to US Fed. Spec. RR-C-271
• Finish: hot dipped galvanized
• Certification: 2.1 2.2 CE

• Note: import quality
working diameter diameter diameter width length weight
load bow pin eye inside inside each
limit
a b c d e
G-3151 t mm mm mm mm mm kg
0.33 5 6 12 9.5 19 0.03
0.5 6 8 16 12 22 0.04
0.75 8 10 19 13.5 26 0.08
1 10 11 23 17 32 0.13
1.5 11 13 27 19 37 0.2
2 13 16 30 20 41 0.28 1
3.25 16 19 38 27 51 0.57
4.75 19 22 46 32 60 1.19
6.5 22 25 53 36 71 1.43
8.5 25 28 61 43 81 2.16
9.5 28 32 68 46 90 3.06
12 32 35 76 51 100 4.11
13.5 35 38 84 57 111 5.28
17 38 42 92 60 122 6.69
25 45 50 106 73 146 12.14

Yellow Pin Shackles

Dee shackle with safety bolt

• Material: bow and pin high tensile steel, grade 6
• Standard: generally to US Fed. Spec. RR-C-271
• Finish: hot dipped galvanized
• Certification: 2.1 2.2 CE

• Note: import quality
working diameter diameter diameter width length weight
load bow pin eye inside inside each
limit
a b c d e
G-3153 t mm mm mm mm mm kg
2 13 16 30 20 41 0.33
3.25 16 19 38 27 51 0.62
4.75 19 22 46 32 60 1.02
6.5 22 25 53 36 71 1.49
8.5 25 28 61 43 81 2.26
9.5 28 32 68 46 90 3.2
12 32 35 76 51 100 4.91
13.5 35 38 84 57 111 5.84
17 38 42 92 60 122 8.4
25 45 50 106 73 146 11.9
