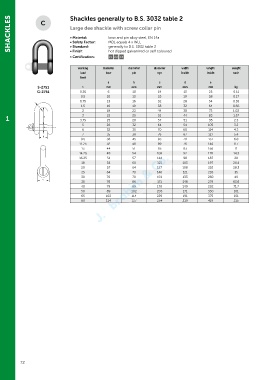

Page 72 - Green Pin Product Catalogue 2019_EN

SHACKLES Shackles generally to B.S. 3032 table 2

Large dee shackle with screw collar pin

bow and pin alloy steel, EN 14a
• Material:
MBL equals 4 x WLL
• Safety Factor:
• Standard:
• Finish:
hot dipped galvanized or self coloured
• Certification: generally to B.S. 3032 table 2
2.1 2.2 CE

working diameter diameter diameter width length weight
load bow pin eye inside inside each
limit
a b c d e
S-2751 t mm mm mm mm mm kg
G-2751 0.25 6 10 19 13 25 0.11
0.5 10 13 25 19 38 0.17
0.75 13 16 32 28 54 0.35
1.5 16 19 38 32 64 0.66
2 19 22 44 38 73 1.02
3
1 3.75 22 25 51 44 83 1.57
57
25
95
2.3
28
51
5 28 32 64 54 105 3.2
6 32 35 70 60 114 4.3
7 35 38 76 67 127 5.4
9.5 38 45 83 70 137 6.8
11.25 42 48 89 76 146 8.7
13 44 51 95 83 156 11
14.25 48 54 108 92 178 14.3
16.25 51 57 114 98 187 20
18 54 60 121 105 197 26.4
20 57 64 127 108 210 28.3
25 64 73 146 121 235 35
30 70 79 159 133 260 49
35 76 86 171 146 279 63.6
40 79 89 178 149 292 71.7
50 89 102 203 171 330 101
65 102 114 229 191 375 151
80 114 127 254 219 419 215
