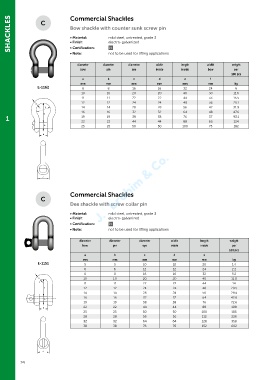

Page 74 - Green Pin Product Catalogue 2019_EN

SHACKLES Commercial Shackles

Bow shackle with counter sunk screw pin

mild steel, untreated, grade 3
• Material:
• Finish:
electro-galvanized
• Certification:
2.1
• Note: not to be used for lifting applications
diameter diameter diameter width length width weight
bow pin eye inside inside bow per
100 pcs
a b c d e f
mm mm mm mm mm mm kg
E-1162 8 8 16 16 32 24 6
10 10 20 20 40 30 11.6
11 11 22 22 44 33 15.5
12 12 24 24 48 36 20.1
14 14 28 28 56 42 31.9
16 16 32 32 64 48 47.6
1 19 19 38 44 76 57 93.1
38
22
88
44
22
124
66
25 25 50 50 100 75 182

Commercial Shackles

Dee shackle with screw collar pin

• Material: mild steel, untreated, grade 3
• Finish: electro-galvanized
• Certification: 2.1
• Note: not to be used for lifting applications

diameter diameter diameter width length weight
bow pin eye inside inside per
100 pcs
a b c d e
mm mm mm mm mm kg
E-1151 5 5 10 10 20 1.4
6 6 12 12 24 2.2
8 8 16 16 32 5.2
10 10 20 20 40 11.8
11 11 22 22 44 14
12 12 24 24 48 20.5
14 14 28 28 56 29.4
16 16 32 32 64 42.6
19 19 38 38 76 72.6
22 22 44 44 88 108
25 25 50 50 100 185
28 28 56 56 112 226
32 32 64 64 128 358
38 38 76 76 152 602
