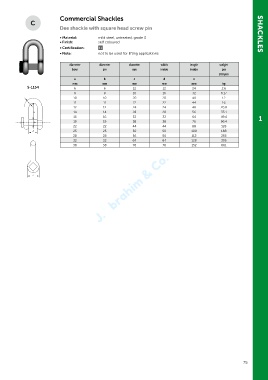

Page 75 - Green Pin Product Catalogue 2019_EN
P. 75
Commercial Shackles
Dee shackle with square head screw pin
• Material: mild steel, untreated, grade 3 SHACKLES
• Finish: self coloured
• Certification: 2.1
• Note: not to be used for lifting applications
diameter diameter diameter width length weight
bow pin eye inside inside per
100 pcs
a b c d e
mm mm mm mm mm kg
S-1154 6 6 12 12 24 2.6
8 8 16 16 32 6.17
10 10 20 20 40 12
11 11 22 22 44 16
12 12 24 24 48 20.8
14 14 28 28 56 33.1
16 16 32 32 64 49.4 1
19 19 38 38 76 96.4
22 22 44 44 88 128
25 25 50 50 100 188
28 28 56 56 112 265
32 32 64 64 128 395
38 38 76 76 152 661
75
