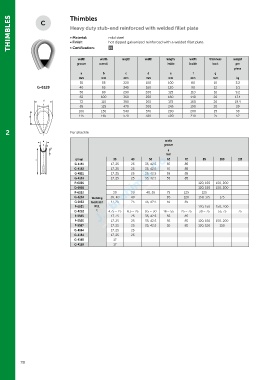

Page 78 - Green Pin Product Catalogue 2019_EN

THIMBLES Thimbles mild steel

Heavy duty stub-end reinforced with welded fillet plate

• Material:
• Finish:
hot dipped galvanized reinforced with a welded fillet plate
• Certification:

width width 2.1 length width length width thickness weight
groove overall inside inside back per
piece
a b c d e f g
mm mm mm mm mm mm mm kg
35 55 220 150 100 80 10 3.2
G-6128 40 65 245 160 120 90 12 5.1
50 80 290 200 125 110 16 9.2
62 100 360 250 160 140 20 17.4
72 115 390 265 175 160 20 19.4
f
g 85 125 470 300 245 190 20 29
100 150 540 370 290 200 25 39
115 165 570 380 300 210 25 52

2 For shackle
width
f groove
g
a
mm
group 35 40 50 62 72 85 100 115
G-4161 17, 25 25 35, 42.5 55 85
G-4163 17, 25 25 35, 42.5 55 85
G-4151 17, 25 25 35, 42.5 55 85
G-4153 17, 25 25 35, 42.5 55 85
P-6036 120, 150 150, 200
G-6038 120, 150 150, 200
P-6033 30 30 40, 55 75 125 125
G-5263 Working 30, 40 40 85 120 150, 175 175
G-5163 load limit 17, 25 25 35, 42.5 55 85
P-6031 WLL 120, 150 150, 200
G-4263 t 4.75 ~ 25 6.5 ~ 25 9.5 ~ 30 16 ~ 55 25 ~ 75 30 ~ 75 55, 75 75
P-5363 17, 25 25 35, 42.5 55 85
P-5365 17, 25 25 35, 42.5 55 85 120, 150 150, 200
P-5367 17, 25 25 35, 42.5 55 85 120, 150 150
G-4164 17, 25 25
G-4154 17, 25 25
G-4169 17
G-4159 17

78
