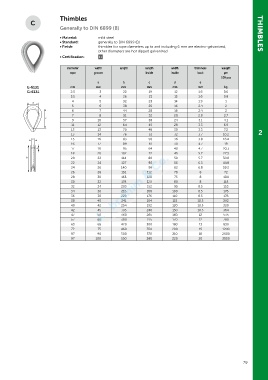

Page 79 - Green Pin Product Catalogue 2019_EN

Thimbles

Generally to DIN 6899 (B)

• Material: mild steel THIMBLES
• Standard: generally to DIN 6899 (B)
• Finish: thimbles for rope diameters up to and including 6 mm are electro-galvanized,
other diameters are hot dipped galvanized
• Certification: 2.1

diameter width length length width thickness weight
rope groove inside inside back per
100 pcs
a b c d e
E-6131 mm mm mm mm mm mm kg
G-6131 2.5 3 22 19 12 1.6 0.6
3.5 4 26 21 13 1.6 0.8
4 5 32 23 14 1.9 1
5 6 38 25 16 2.4 2
6 7 44 28 18 2.4 2
7 8 51 32 20 2.8 2.7
9 10 57 38 24 3.1 4.1
11 12 64 45 28 3.3 6.9
13 13 70 48 30 3.3 7.2
13 14 76 51 32 3.7 10.2 2
15 16 83 58 36 3.8 16.4
16 17 89 61 38 4.7 19
17 18 95 64 40 4.7 20.3
18 20 102 72 45 5.7 27.3
20 22 114 80 50 5.7 30.8
22 24 127 90 56 6.5 44.8
24 26 140 99 62 6.8 59.2
26 28 152 112 70 8 72
28 30 165 120 75 8 104
30 32 178 128 80 8 115
32 34 203 152 95 8.5 153
34 36 216 160 100 8.5 176
36 38 229 176 110 8.5 176
38 40 241 184 115 10.5 292
40 42 254 192 120 10.5 320
42 45 305 240 150 10.5 364
47 50 360 265 160 12 535
57 60 380 275 170 12 790
63 65 420 300 180 13 830
72 75 460 350 200 15 1200
87 90 500 370 210 18 2600
97 100 550 380 220 20 3050
