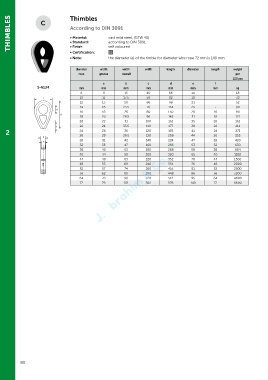

Page 80 - Green Pin Product Catalogue 2019_EN

THIMBLES Thimbles cast mild steel, (GTW 40)

According to DIN 3091

• Material:
according to DIN 3091
• Standard:
• Finish:
• Certification: self coloured
2.1
• Note: the diameter (e) of the timble for diameter wire rope 72 mm is 140 mm

diameter width width width length diameter length weight
rope groove overall per
100 pcs
a b c d e f
S-6134 mm mm mm mm mm mm mm kg
8 9 15 40 66 14 - 18
10 11 17.5 50 82 18 - 32
12 13 20 60 98 21 - 52
14 16 23.5 70 114 25 - 80
16 18 26 80 130 28 16 90
18 20 28.5 90 145 31 18 121
20 22 31 100 161 35 20 161
f 22 24 33.5 110 177 38 22 211
2 24 26 39.5 120 209 41 24 355
36
271
193
29
26
26
130
44
28 31 42 140 224 47 28 420
32 35 47 160 256 53 32 630
36 40 53 180 288 59 36 884
40 44 58 200 320 65 40 1100
44 48 63 220 352 70 44 1500
48 53 69 240 384 76 48 2000
52 57 74 260 416 81 52 2500
56 62 80 280 448 86 56 3200
64 70 90 320 512 95 64 4600
72 79 101 360 576 140 72 6600

80
