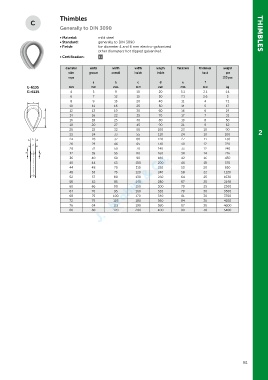

Page 81 - Green Pin Product Catalogue 2019_EN

Thimbles

Generally to DIN 3090

• Material: mild steel THIMBLES
• Standard: generally to DIN 3090
• Finish: for diameter 4 and 6 mm electro-galvanized
other diameters hot dipped galvanized
• Certification: 2.1

diameter width width width length thickness thickness weight
wire groove overall inside inside back per
rope 100 pcs
a b c d e f
E-6135 mm mm mm mm mm mm mm kg
G-6135 4 5 9 10 20 5.1 2.1 1.4
6 7 12 15 30 7.1 2.6 3
8 9 13 20 40 11 4 7.1
10 11 16 25 50 14 5 17
12 13 19 30 60 16 6 24
14 16 22 35 70 17 7 31
16 18 25 40 80 19 8 50
18 20 27 45 90 21 9 62
20 22 32 50 100 23 10 90
22 24 33 55 110 24 10 100 2
24 26 37 60 120 27 11 130
26 29 46 65 130 30 12 220
28 31 50 70 140 33 12 240
32 35 55 80 160 38 14 216
36 40 60 90 180 42 16 430
40 44 65 100 200 46 18 570
44 48 70 110 220 53 20 850
48 53 75 120 240 58 22 1120
52 57 80 130 260 64 25 1530
56 62 85 140 280 67 25 2148
60 66 90 150 300 70 25 2300
64 70 95 160 320 78 30 3500
68 75 100 170 340 81 30 3700
72 79 105 180 360 84 30 4100
76 84 115 190 380 87 30 4600
80 88 120 200 400 90 30 5400
