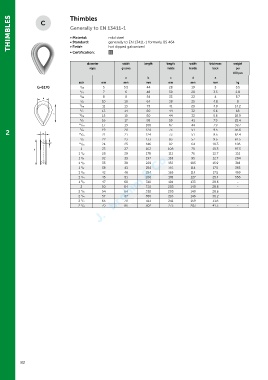

Page 82 - Green Pin Product Catalogue 2019_EN

THIMBLES Thimbles mild steel

Generally to EN 13411-1

• Material:
generally to EN 13411-1 formerly BS 464
• Standard:
• Finish:
• Certification: hot dipped galvanized
2.1
diameter width length length width thickness weight
rope groove inside inside back per
100 pcs
a b c d e
inch mm mm mm mm mm mm kg
G-6170 3 /16 5 5.5 44 28 19 3 3.5
1 7 6 48 30 20 3.5 2.8
/4
5 8 8 54 33 22 4 5.7
/16
3 10 10 64 38 25 4.8 8
/8
7 11 13 73 41 29 4.8 14.2
/16
1 13 14 80 44 32 5.6 18
/2
9 15 15 80 44 32 5.6 18.9
/16
5 16 17 98 59 41 7.9 22.4
/8
11 17 19 108 67 44 7.9 39.7
/16
3
2 13 /4 19 20 124 73 51 9.5 45.6
124
73
51
62.4
21
21
9.5
/16
7 22 23 133 83 57 9.5 61.5
/8
15 24 25 146 92 64 10.3 106
/16
1 25 27 162 108 70 10.3 97.3
1 28 29 178 111 76 12.7 151
1 /8
1 32 33 197 133 95 12.7 204
1 /4
3 35 38 229 152 105 15.9 318
1 /8
1 38 41 254 165 114 17.5 363
1 /2
5 42 46 254 165 114 17.5 499
1 /8
3 45 51 286 178 127 25.4 556
1 /4
7 47 60 318 191 133 28.6 -
1 /8
2 50 64 330 203 140 28.6 -
1 54 64 330 203 140 28.6 -
2 /8
1 57 67 356 216 146 30.2 -
2 /4
1 65 70 413 241 159 31.8 -
2 /2
3
2 /4 70 86 502 273 203 41.3 -

82
