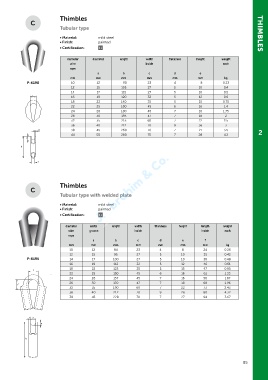

Page 85 - Green Pin Product Catalogue 2019_EN
P. 85
Thimbles
Tubular type
• Material: mild steel THIMBLES
• Finish: painted
• Certification: 2.1
diameter diameter length width thickness height weight
wire inside each
rope
a b c d e
mm mm mm mm mm mm kg
P-6190 10 12 90 23 4 8 0.23
12 15 105 27 5 10 0.4
14 17 115 27 5 10 0.5
16 19 120 32 5 12 0.6
18 22 140 35 5 15 0.75
22 25 180 45 6 16 1.4
24 28 180 45 7 16 1.75
26 30 195 47 7 18 2
32 35 215 60 7 22 2.5
36 40 212 70 9 36 3
38 45 260 70 7 27 3.5 2
44 50 280 75 7 28 4.2
Thimbles
Tubular type with welded plate
• Material: mild steel
• Finish: painted
• Certification: 2.1
diameter width length width thickness height length weight
wire groove inside inside each
rope
a b c d e f
mm mm mm mm mm mm mm kg
10 12 84 23 4 8 24 0.26
12 15 95 27 5 10 31 0.42
P-6195 14 17 100 27 5 10 38 0.48
16 19 112 32 5 12 46 0.61
18 22 125 35 5 15 47 0.95
c d a
22 25 150 45 6 16 61 1.33
e
24 28 157 45 7 16 56 1.67
26 30 170 47 7 18 68 1.96
f
32 35 190 60 7 22 73 2.43
b 36 40 212 70 9 26 80 4.32
38 45 228 70 7 27 94 3.67
c d a
e
f
b
